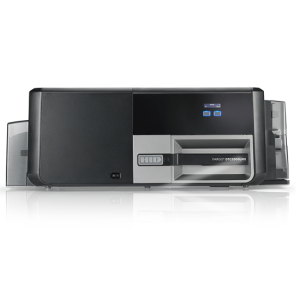

For government agencies, universities, enterprise corporations and healthcare facilities that need direct-to-card printing capability to routinely issue high volumes of IDs or personalized cards cost-effectively, the HID FARGO DTC5500LMX is an affordable, eco-friendly solution that provides high quality card production and features wasteless lamination for an ultralow cost-per-card.
Designed to meet the high volume needs of budget-conscious organizations, the DTC5500LMX includes standard dual card hoppers and support for high-capacity, full-color ribbon and laminate consumables — keeping costs at a minimum while maximizing productivity.
For even greater savings and convenience, the DTC5500LMX also features:
- Dual-sided printing and dual-sided lamination — standard on every unit
- Eco-friendly, wasteless lamination — can reduce high volume laminate materials cost by up to 40 percent
- HID Global’s patent pending iON™ technology — allows the unit to reach optimal operating temperature in just 45 seconds, expediting production
- Durable yet stylish housing — robust, metal components protect inner workings and ensure continuous, reliable operation in even the most demanding printing environments
- Versatility to meet your card application needs today and in the future — multiple, field-upgradable encoder options for one-step, inline printing and encoding
-
- Side Printing: Dual (standard)
- Side Lamination: Dual (standard) LMX wasteless
- Print Method: Dye-sublimation / resin thermal transfer
- Resolution: 300 dpi
- Print Speed: 16 seconds per card / 225 cards per hour (YMCKO)
- Included Software: FARGO Workbench™ printer maintenance and diagnostic software with Color Assist spot-color matching
- Card Capacity: 200 card input (dual input card hopper standard), 100 card output
- Accepted Cards: CR-80, 30-40 mil
- Warranty: Three years*
*Three-year warranty available with completion of online printer registration. (Two-year warranty standard without online printer registration.)
Available Ribbons**:
- YMCKO
- YMCKK
- YMCKOK
- Half-panel YMCKO
- Resin black
- Premium resin black
PolyGuard™ LMX Laminates
Whole, half patch and IC cutout patch options available in the following formats:- Clear
- Clear UV protectant
- Custom holographic
Whole patch option available in the following formats:
- Standard holographic
**For ribbon configuration needs not listed, please contact your HID Sales Representative for more information.
Printer Options:
- Locking card input/output hopper and ribbon drawer
- Smart card encoding modules (contact/contactless)
- Magnetic stripe encoding module
- Printer cleaning kit
- Secure proprietary consumables system
-
-
056305: DTC5500LMX Dual-Sided Printer: 2 Material Lamination. Base Model Printer – WITHOUT Locking Hoppers
056306: DTC5500LMX Dual-Sided Printer: 2 Material Lamination Base Model + ISO Magnetic Stripe Encoder – WITHOUT Locking Hoppers
056308: DTC5500LMX Dual-Sided Printer: 2 Material Lamination. Base Model with an HID Prox, ISO Magnetic Stripe Encoder, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127-USB ONLY) Three Year Printer Warranty – WITHOUT Locking Hoppers *Not a drop in replacement for OMNIKEY 5121 or 5125.
056397: DTC5500LMX UPGRADE KIT DTC5500LMX LOCK Limit access to your DTC5500LMX printer with this optional lock kit.
047500: DTC5500LMX Thermal Printhead for C50, DTC1000Me, DTC1250e, DTC4250e, DTC4500e, DTC1000, DTC4000, DTC4500, and DTC5500LMX (Configured for field replacement)
047703: DTC5500LMX UPGRADE KIT 5125 HID Prox Card Encoder (Omnikey Cardman 5125) for DTC1500, DTC4250e, DTC4500e, DTC5500LMX
047709: DTC5500LMX UPGRADE KIT MG ISO Magnetic Stripe Encoder for DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC5500LMX
047710: DTC5500LMX UPGRADE KIT JIS II MG JIS II Magnetic Stripe Encoder for DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC5500LMX
047711: DTC5500LMX UPGRADE ETHERNET KIT Add ethernet capabilities to your HID FARGO Printer with this field installable module. Compatible with: DTC1000Me, DTC1250e, DC1500, DTC4250e, DTC5500LMX, DTCii
047713: DTC5500LMX Contact Smart Card Encoder (requires a 5121 or 5125 to be previously installed) for DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC5500LMX, DTCii
-
-
HID Fargo Ribbon Consumables for the HID FARGO DTC5500LMX Printer
Part Number
Description
DTC5500LMX ECO YMCKO: Full-color ribbon with resin black and clear overlay panel – 500 images. Includes cleaning roller. Compatible with: DTC5500LMX
DTC5500LMX ECO Premium Black (K) Refill Ribbon – 3000 images. Includes cleaning roller. Compatible with: DTC5500LMX
DTC5500LMX ECO Standard Black (K) Refill Ribbon– 3000 images. Includes cleaning roller. Compatible with: DTC5500LMX
045709
DTC5500LMX ECO YMCFKO: Full-color ribbon with fluorescing panel, resin black and clear overlay panel – 500 images. Compatible with: DTC5500LMX
DTC5500LMX ECO YMCKOK: Full-color ribbon with two resin black panels and clear overlay panel – 500 images. Includes cleaning roller. Compatible with: DTC5500LMX
DTC5500LMX ECO YMCKO Half Panel with Cleaning Roller: Full-color ribbon with resin black and clear overlay panel – 850 images. Includes cleaning roller. Compatible with: DTC5500LMX
DTC5500LMX ECO YMCKK: Full-color ribbon with two resin black panels – 500 images. Includes cleaning roller. Compatible with: DTC5500LMX
045720
DTC5500LMX YMCKO: Enhanced Full-color ribbon with resin black and clear overlay panel – 500 images. Compatible with: DTC5500LMX
045721
DTC5500LMX YMCKOK: Enhanced Full-color ribbon with two resin black panels and clear overlay panel – 500 images. Compatible with: DTC5500LMX
045722
DTC5500LMX YMCKK: Enhanced Full-color ribbon with two resin black panels – 500 images. Compatible with: DTC5500LMX
HID Fargo Overlaminate PolyGuard Consumables for the HID FARGO HDP5000 Printer
Part Number
Description
DTC5500LMX PolyGuard 1.0 mil Overlaminate, Clear, 1000 count. Compatible with: HFC DTC5500LMX
DTC5500LMX PolyGuard 1.0 mil Overlaminate, High Secure Orbit design, Universal orientation, 250 count. Compatible with: HFC DTC5500LMX
DTC5500LMX PolyGuard 1.0 mil Overlaminate, half patch for magnetic stripe side of card, Clear, 250 count. Compatible with: HFC DTC5500LMX
HDP5000 PolyGuard 1.0 mil Overlaminate, High Secure Orbit design, Universal orientation, 250 count. Compatible with: DTC1500, DTC4500e, DTC4500, HDP5000, HDP8500 (For use with cartridge 1 or 2*)
HDP5000 PolyGuard 0.6 mil Overlaminate, half patch for magnetic stripe side of card, Clear, 250 count. Compatible with: DTC1500, DTC4500e, DTC4500, HDP5000, HDP8500 (For use with cartridge 2*)
HDP5000 PolyGuard 1.0 mil Overlaminate, half patch for magnetic stripe side of card, Clear, 250 count. Compatible with: DTC1500, DTC4500e, DTC4500, HDP5000, HDP8500 (For use with cartridge 2*)
082613
HDP5000 PolyGuard UV Resistant 1.0 mil Overlaminate, with left side cutout for smart chip,Clear — reduces image fading caused by exposure to light, 250 count. Compatible with: DTC1500, DTC4500e, DTC4500, HDP5000, HDP8500 (For use with cartridge 1 or 2*)
HID Fargo Cards Consumables for the HID FARGO HDP5000 Printer
Part Number
Description
UltraCard Premium “Composite” 30 mil cards Size:CR-80
UltraCard Premium “Composite” 30 mil cards with High-Coercivity Magnetic Stripe Size:CR-80
CONTACT OUR TECHNOLOGY CARD EXPERTS AT 800-729-3722 or sales@integratedid.com
HID Fargo Cleaning Kit for the DTC5500LMX Printer
Part Number
Description
056399
DTC5500LMX Cleaning Kit – includes 4 Printhead Cleaning Swabs, 20 Cleaning Cards and 3 Alcohol Cleaning Cards. Compatible with DTC5500LMX
HDP5000 Cleaning Rollers – 10 pack
HDP5000 Extra Cleaning Cards (double sided), 50 count. Compatible with: C50, DTC1000Me, DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC1000, DTC4000, DTC4500, HDP5000, HDP6600, HDPii, DTC400e, DTC550
HDP5000 Iso-Propyl Alcohol Cleaning Cards – 10 pack. Compatible with: C50, DTC1000Me, DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC1000, DTC4000, DTC4500, HDP5000, HDP6600, HDPii, DTC400e, DTC550
081760
HDP5000 Extra Cleaning Cards, 50 count. Compatible with: HDP5000, HDPii Plus, HDPii
-
- Warranty: 3 years (printer)*; Lifetime (printhead)*
*Three-year warranty available on printers and lifetime warranty available on printheads with completion of online printer registration. (Two-year warranty standard on both printer and printheads without online printer registration.)
